Description
| 🔧 Key Features | |
|---|---|

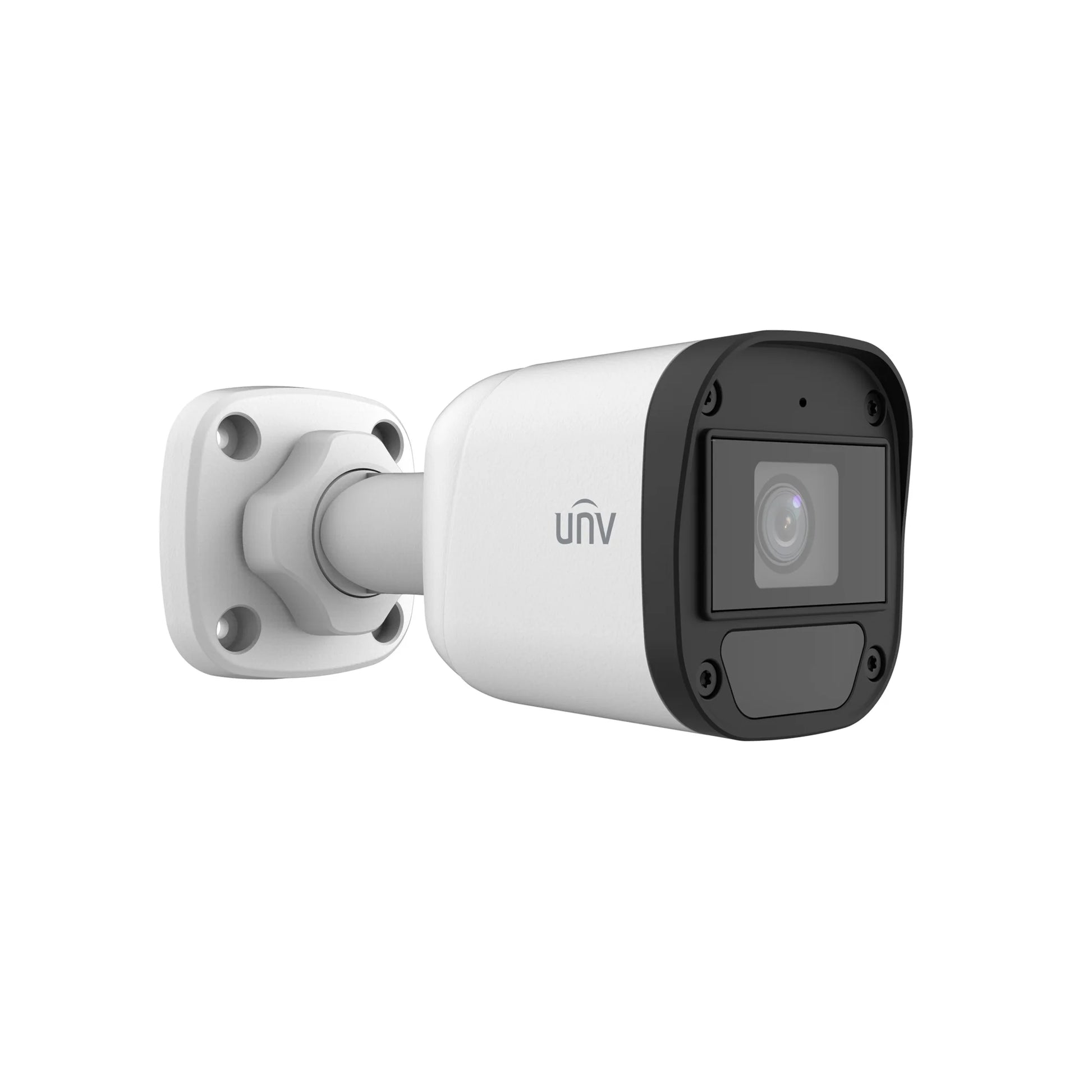

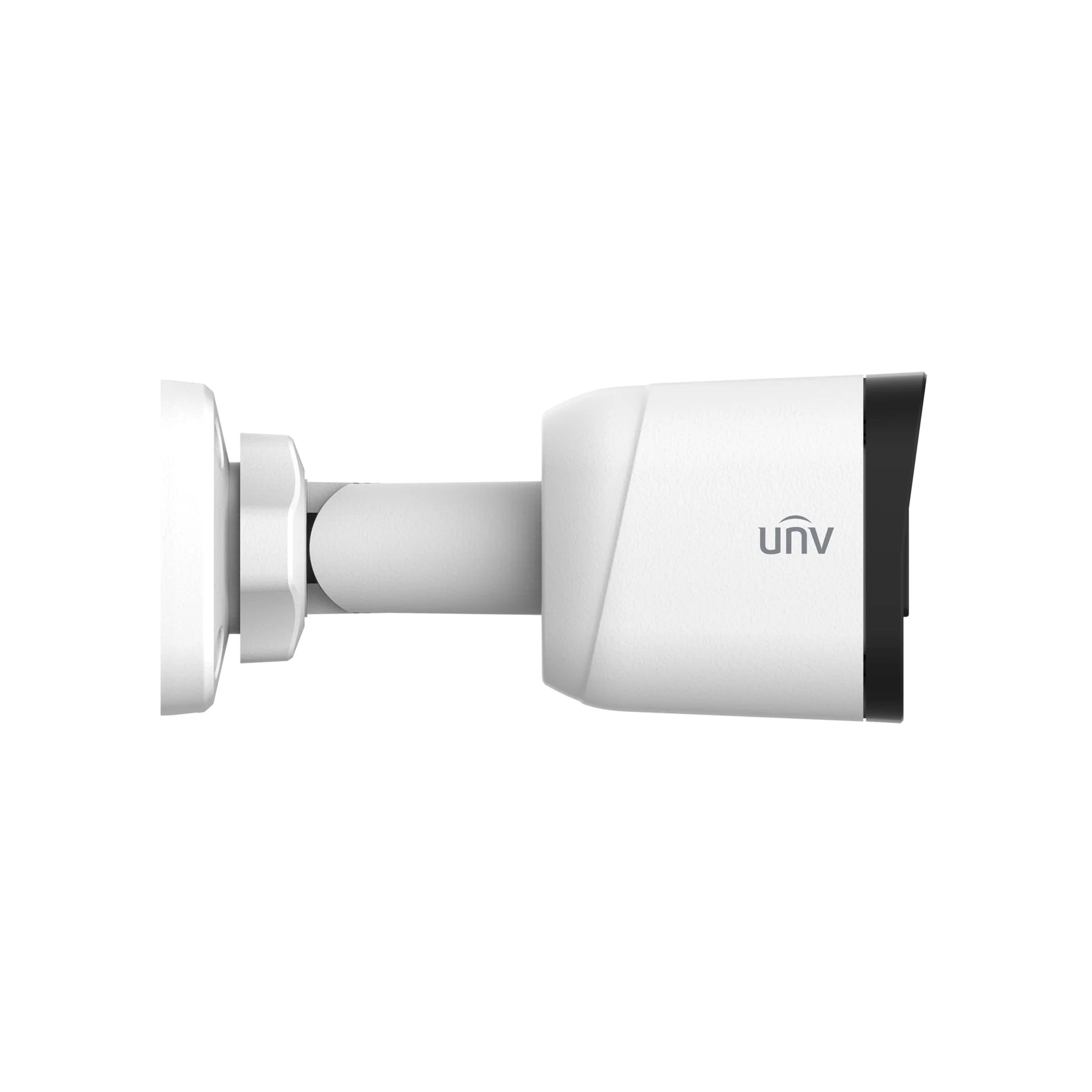

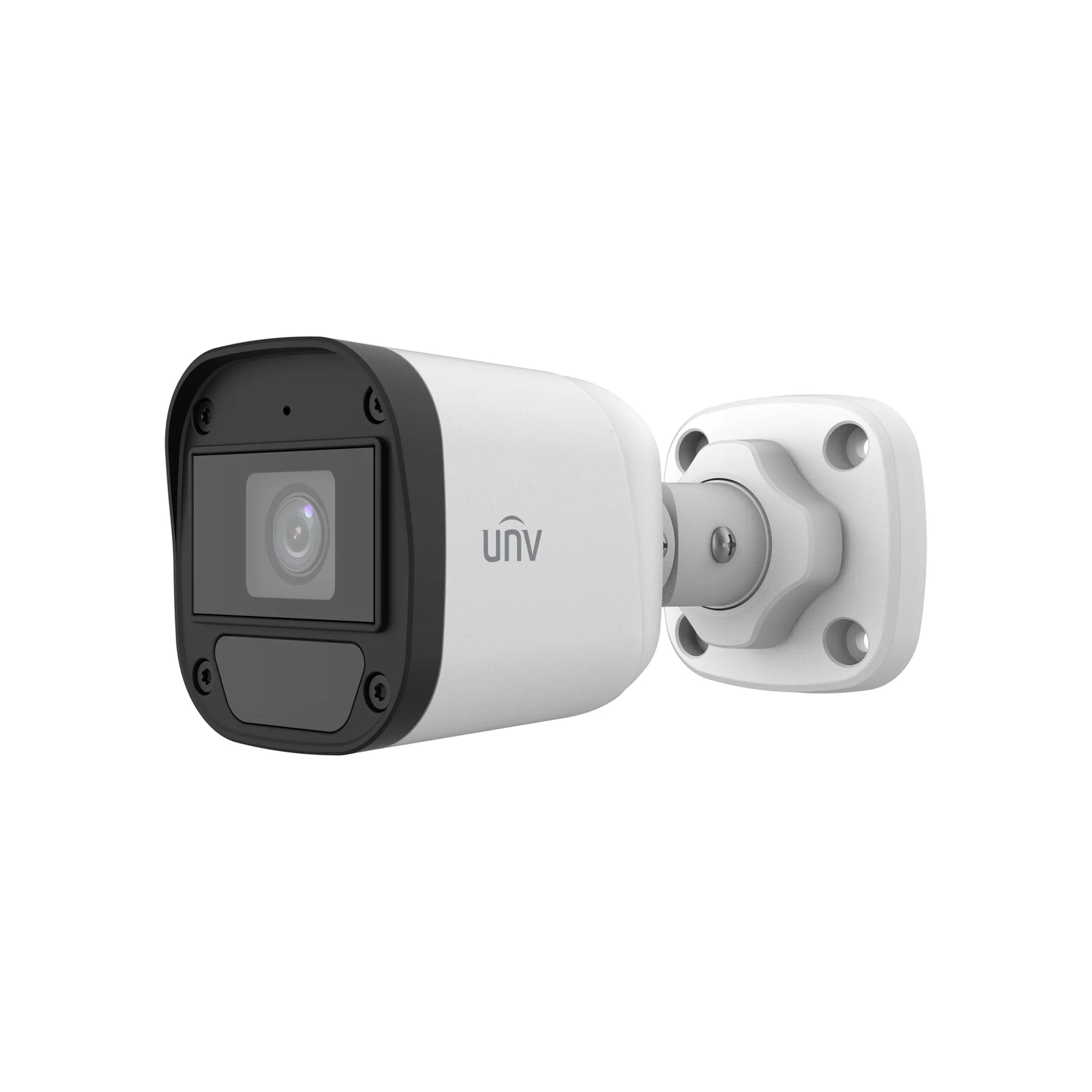

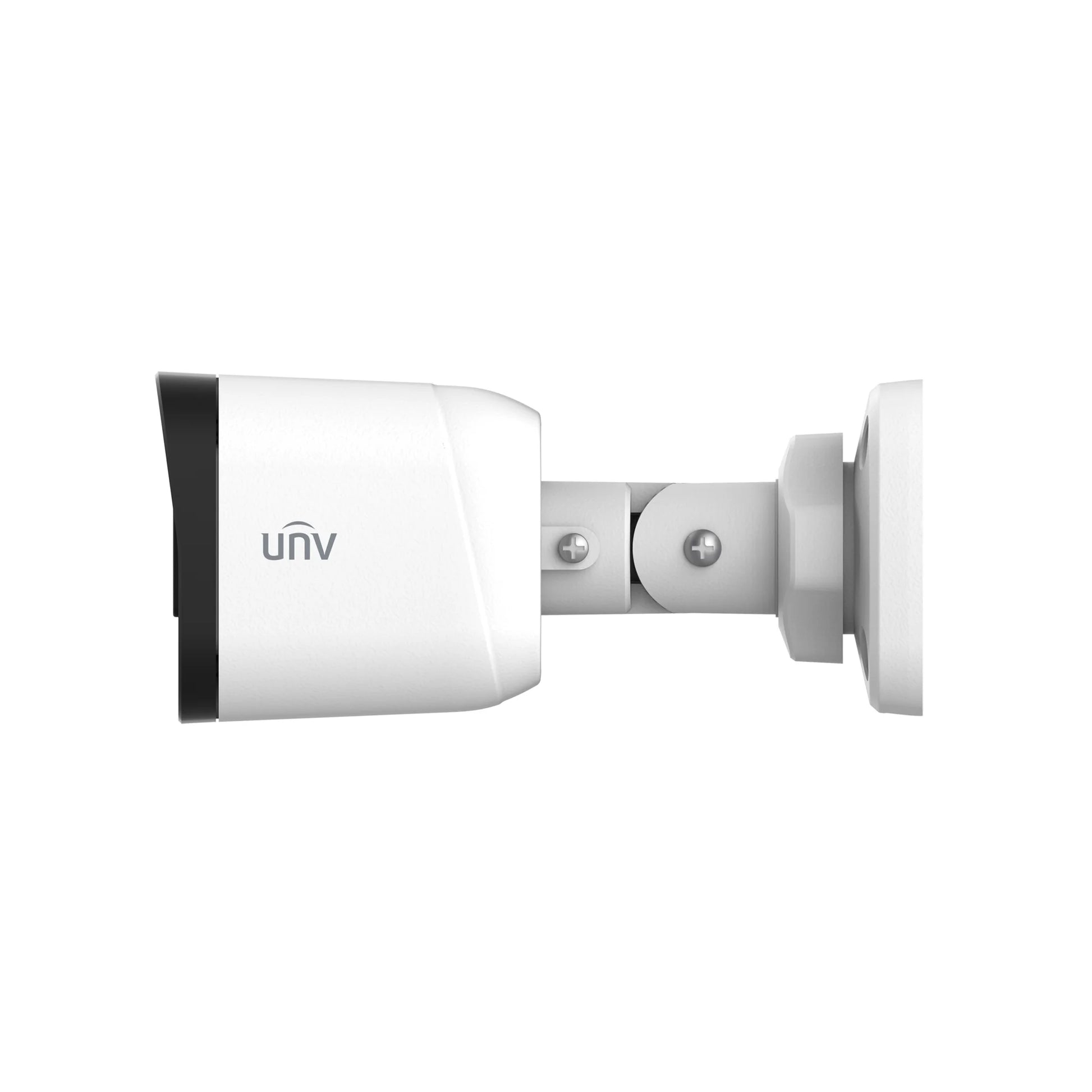

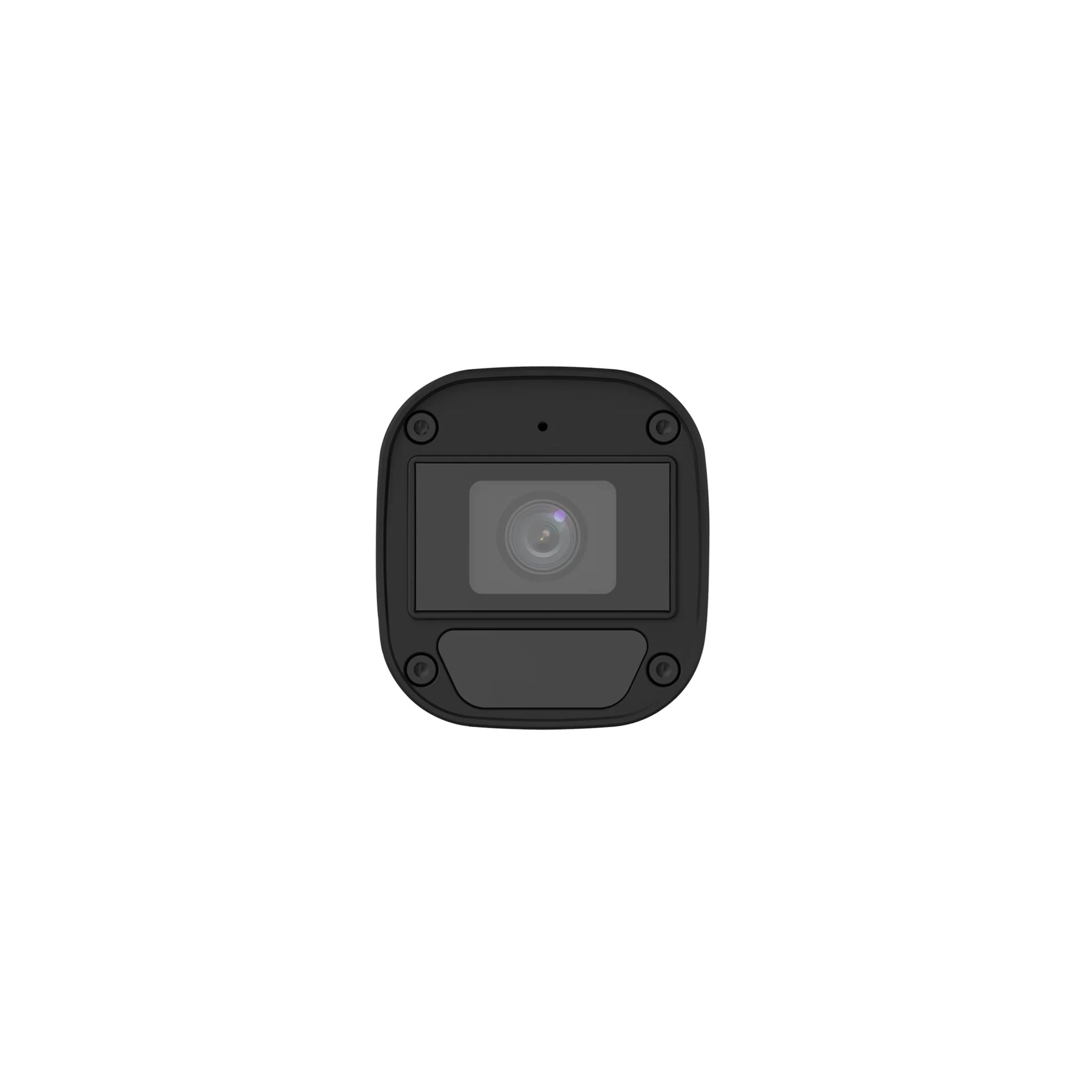

| Model | Uniview UAC-B112-AF40-W |
| Image | |
| Image Sensor | 2 MP, 1/3″ CMOS |
| Lens | 4.0 mm fixed |
| Field of View | H: 80.2°, V: 40.7°, D: 90.5° |
| Illumination Range | White-light up to 20 m |
| Video & Audio | |
| Video Compression | TVI/AHD/CVI/CVBS |
| Frame Rate | 1080p @ 25/30 fps |
| Audio | Built-in Microphone (via coax) |
| Interface | |
| Power & Video | DC 12 V (5.5 mm jack) & BNC |
| General | |
| Weather Protection | IP67, Surge Protection (4 kV power/video) |
| Operating Range | –30°C to 60°C, humidity ≤95% |
| Dimensions | 142 × 63 × 65 mm |
| Weight | ~135 g |
