Description
| 🔧 Key Features | |
|---|---|

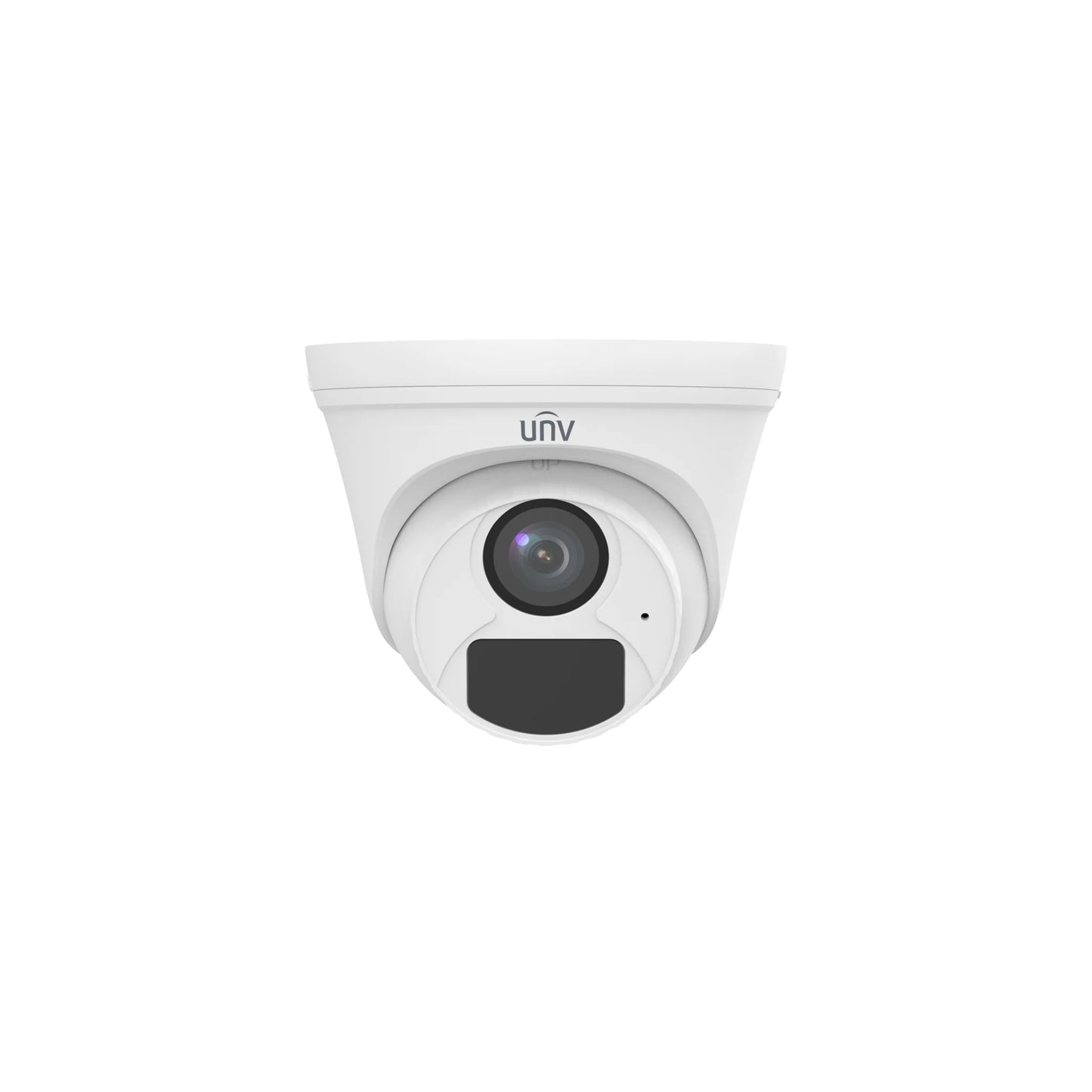

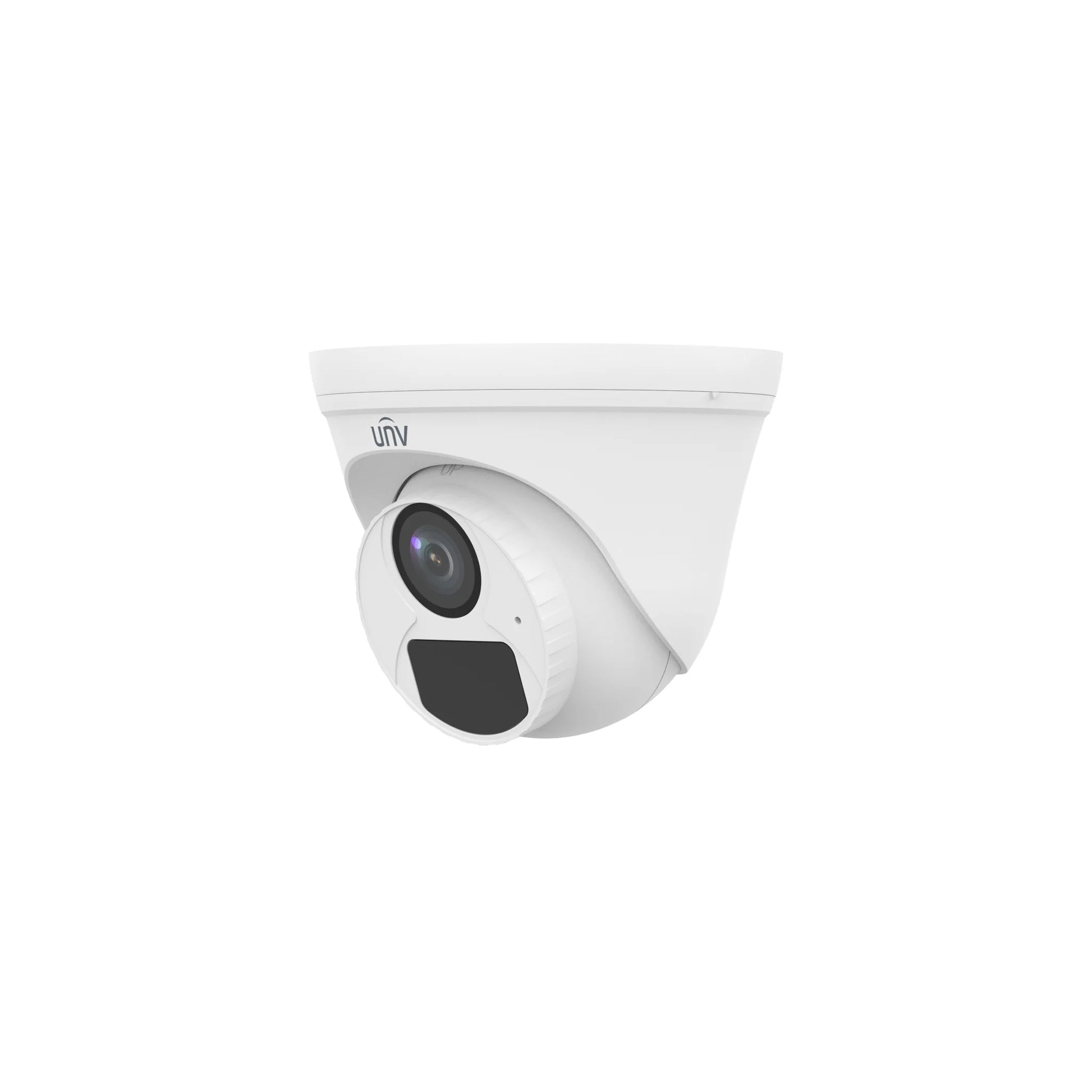

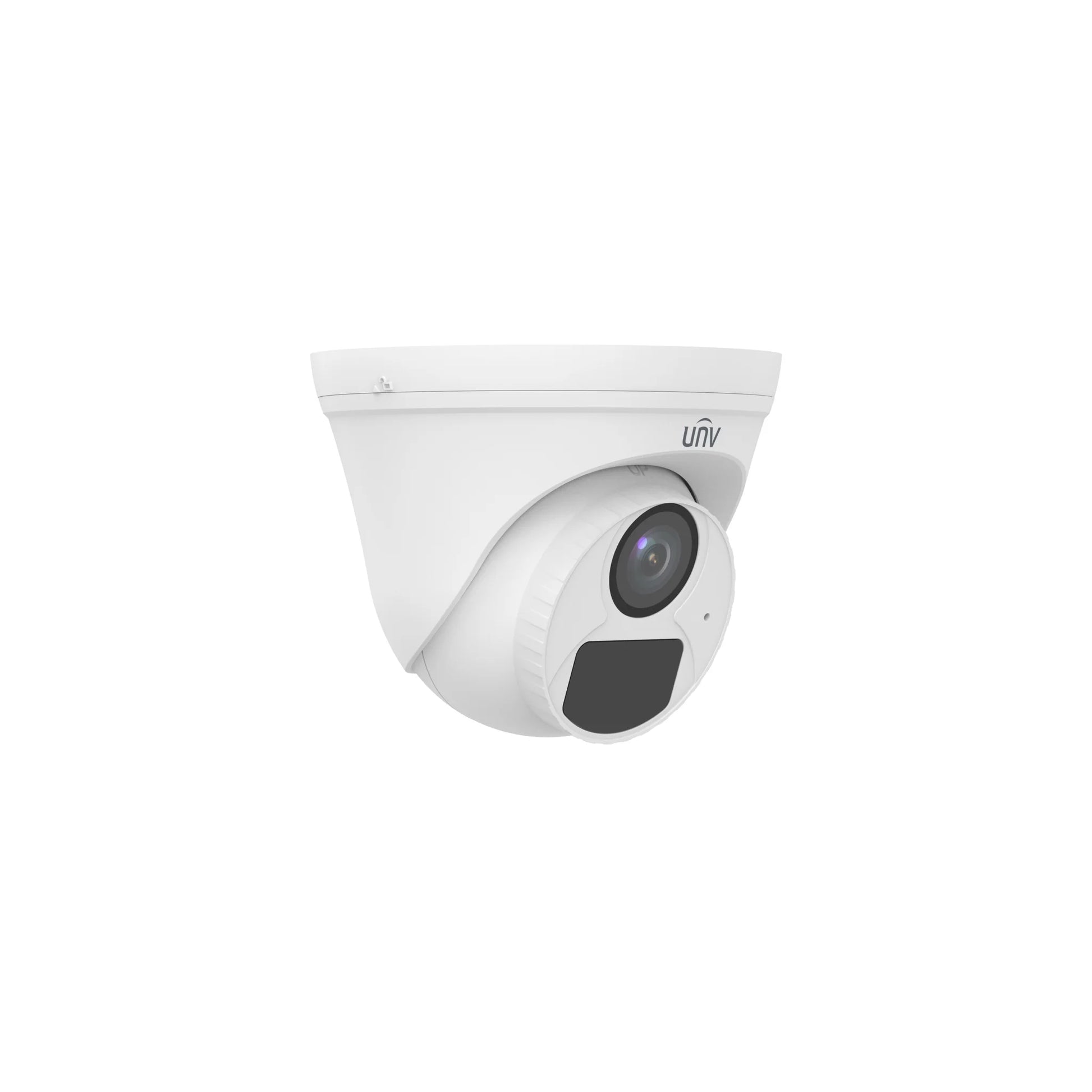

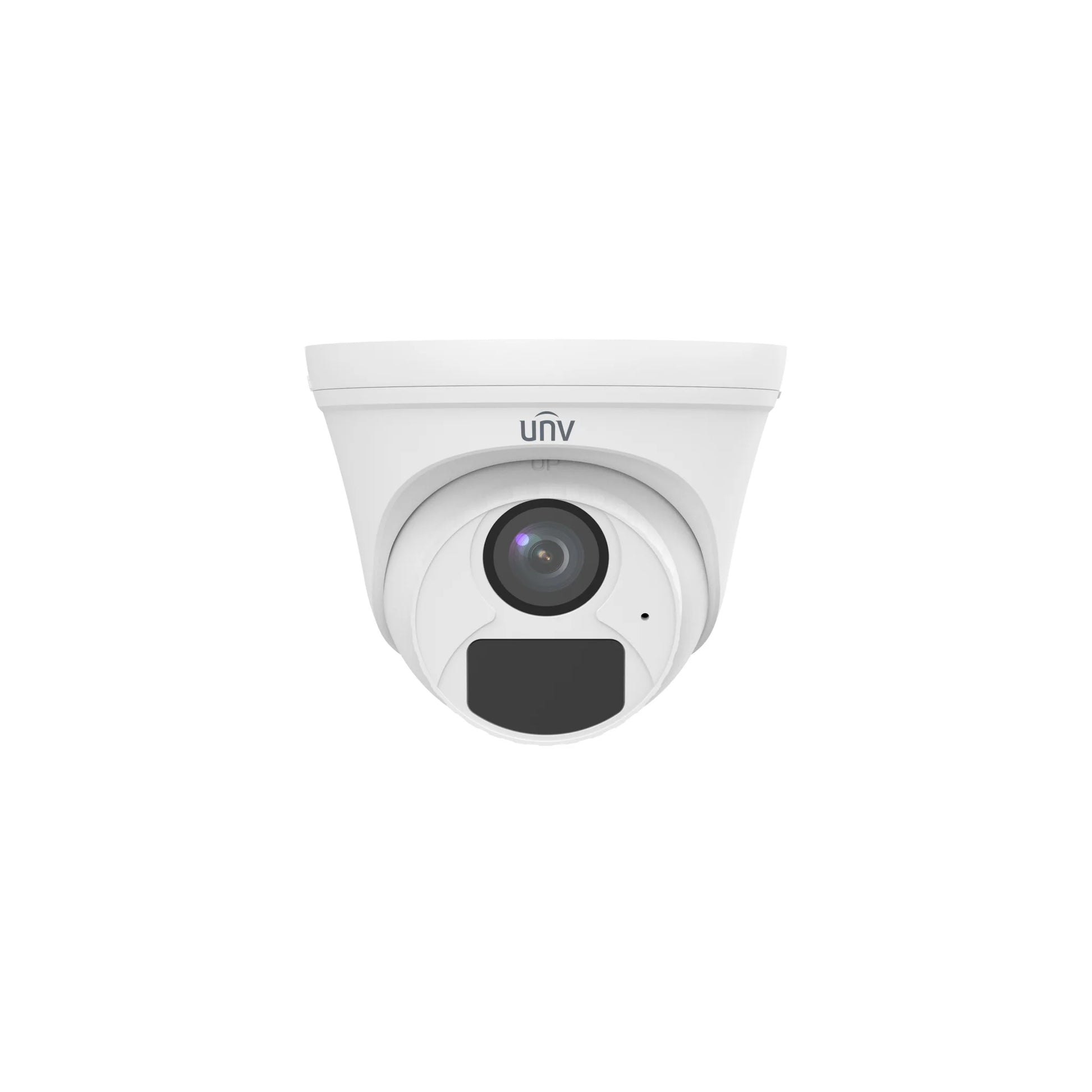

| Model | Uniview UAC-T132-F28 (Indoor Dome, 2 MP) |
| Image | |
| Image Sensor | 2 MP, 1/3.2″ CMOS |
| Lens | 2.8 mm (H: 99.7°, V: 55.1°, D: 117.1°); optional 4 mm |
| Illumination | IR up to 20 m; 0.02 lux (color), 0 lux (IR on) |
| Video | |
| Formats & Frame Rate | TVI/AHD/CVI: 1080p@25/30fps, 720p@25/30fps; CVBS analog |
| Image Enhancements | |
| Features | ICR Day/Night, 2D/3D DNR, DWDR, Smart IR, support 180° flip |
| Interface | |
| Power / Video | DC 12 V; Video via BNC |
| Durability | |
| Build & Protection | IP67 waterproof, 4 kV surge protection (power & video) |
| Environment | -30 °C to 60 °C; ≤ 95 % RH |
| Dimensions | Ø 85 mm × H 72 mm |
| Weight | ~89 g |
