| Model |

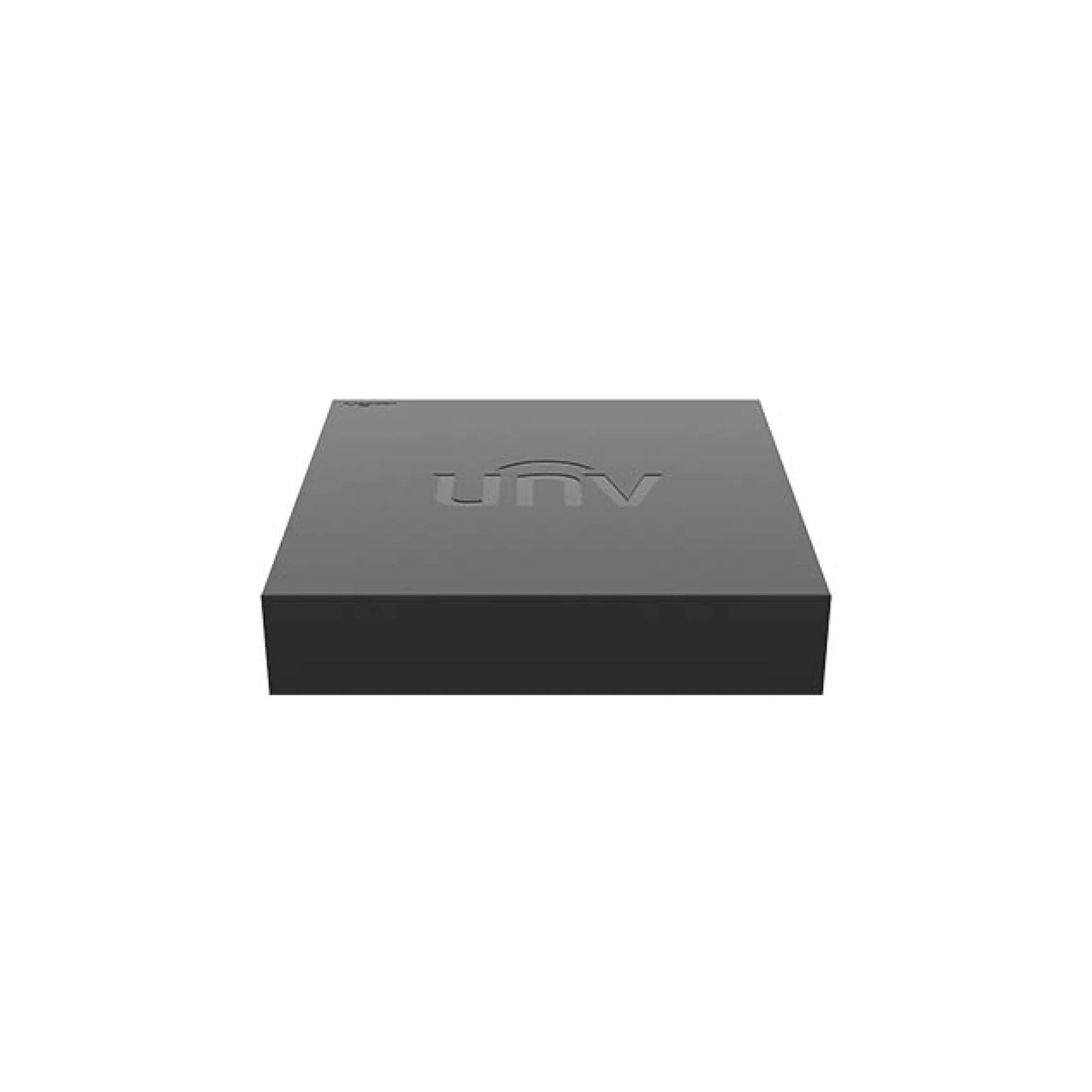

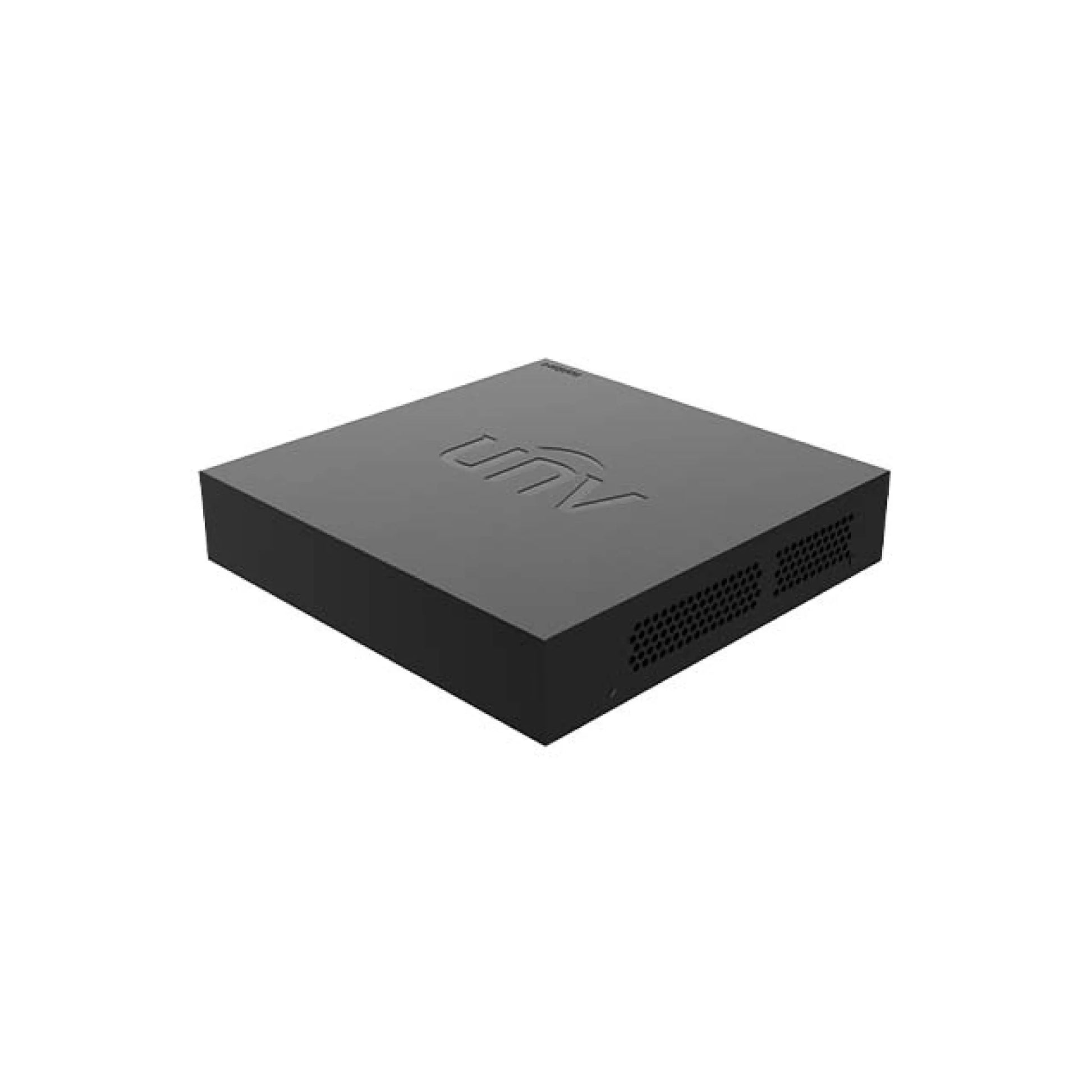

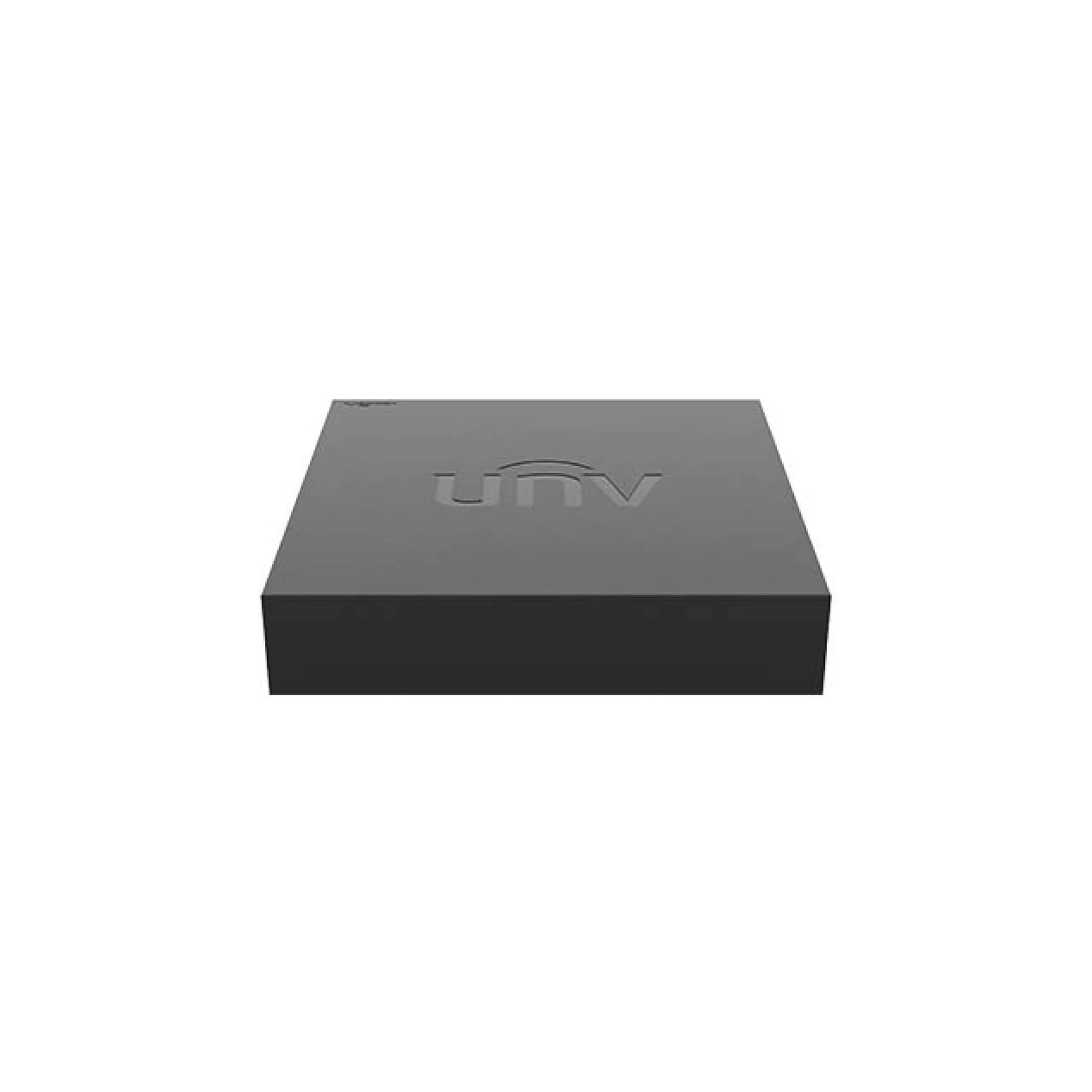

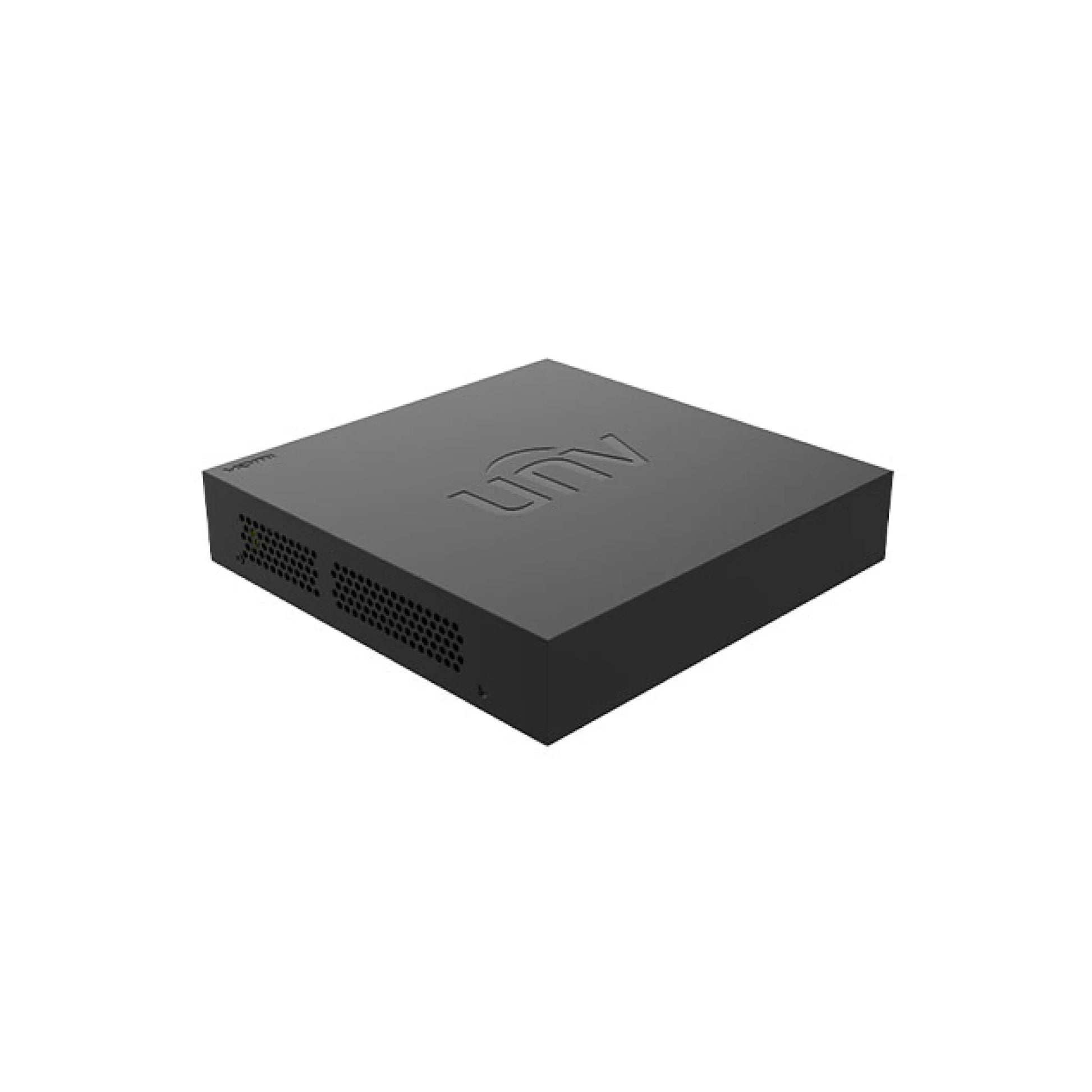

Uniview XVR301-08F |
| Video/Audio Input |
| Analog Video Input |
8-ch BNC (TVI/AHD/CVI/CVBS) |
| IP Video Input |
2-ch (up to 10 ch IP, 6 MP max per channel) |
| Video & Audio |
| Video Compression |
H.265 / H.264 |
| Recording Resolution |
1080P Lite / 720P / D1 |
| Output & Playback |
| HDMI / VGA Output |
Up to 1920×1080, simultaneous output supported |
| Playback Formats |
Display layouts: 1/4/6/8/9/16 |
| Storage |
| HDD Support |
1 × SATA, up to 6 TB per HDD |
| Network & Remote |
| Bandwidth |
Incoming up to 40 Mbps (analog converted); Outgoing 64 Mbps |
| Remote Access |
Up to 128 users; supports ONVIF, RTSP, P2P, HTTP/HTTPS, DDNS, SMTP |
| Other Features |
| Smart Detection |
8-channel Ultra Motion Detection |
| Alerts & Alarms |
Disk/space errors, IP conflict, illegal access, etc. |
| General |
| Power |
12 V DC, ≤10 W (no HDD) |
| Operating Temp |
−10 °C to 55 °C, ≤ 90 % RH |
| Dimensions & Weight |
190 × 202 × 42 mm; ≤ 0.6 kg (no HDD) |
