Description

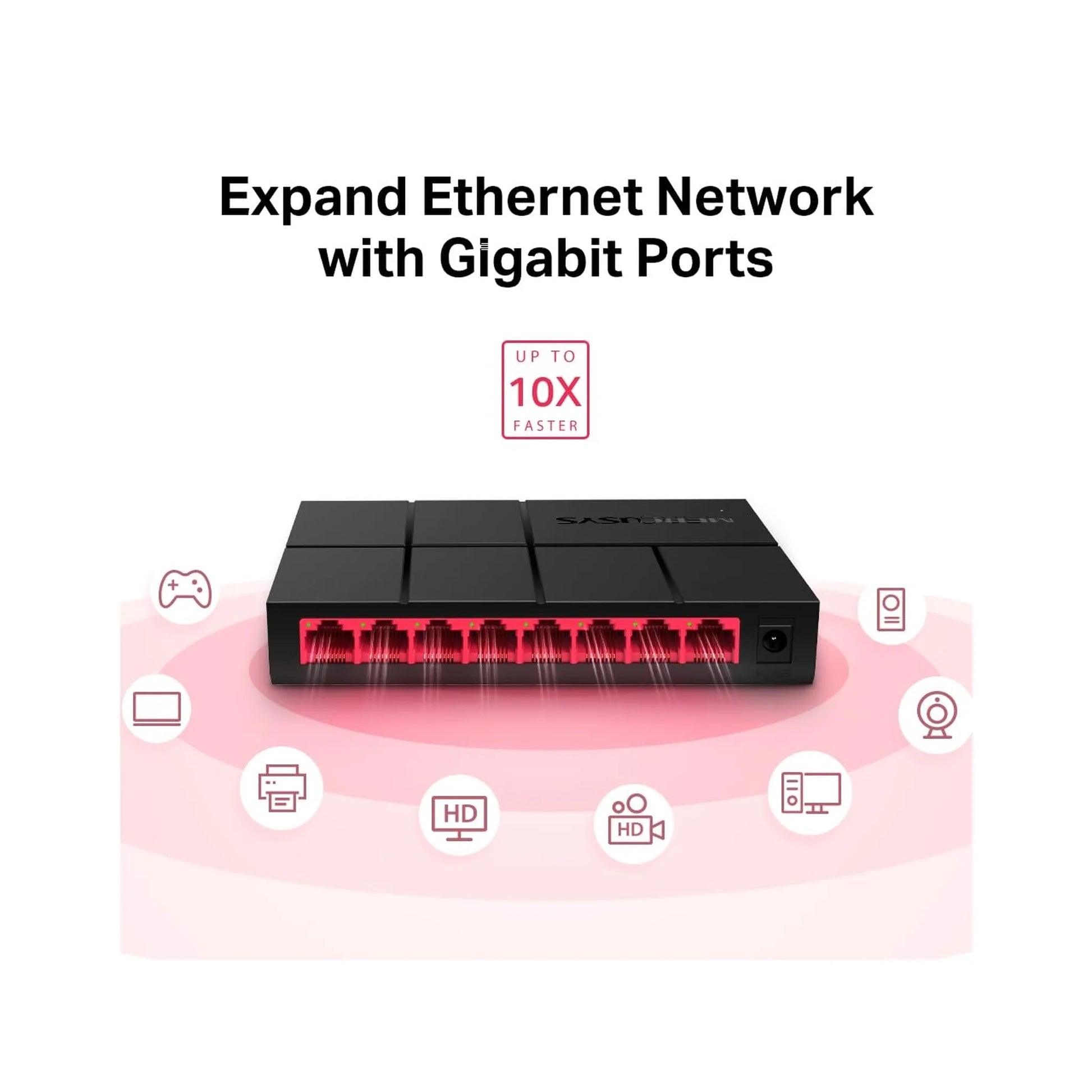

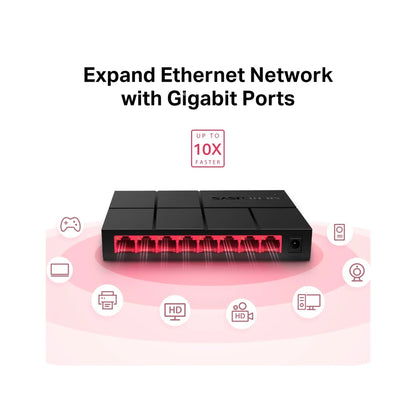

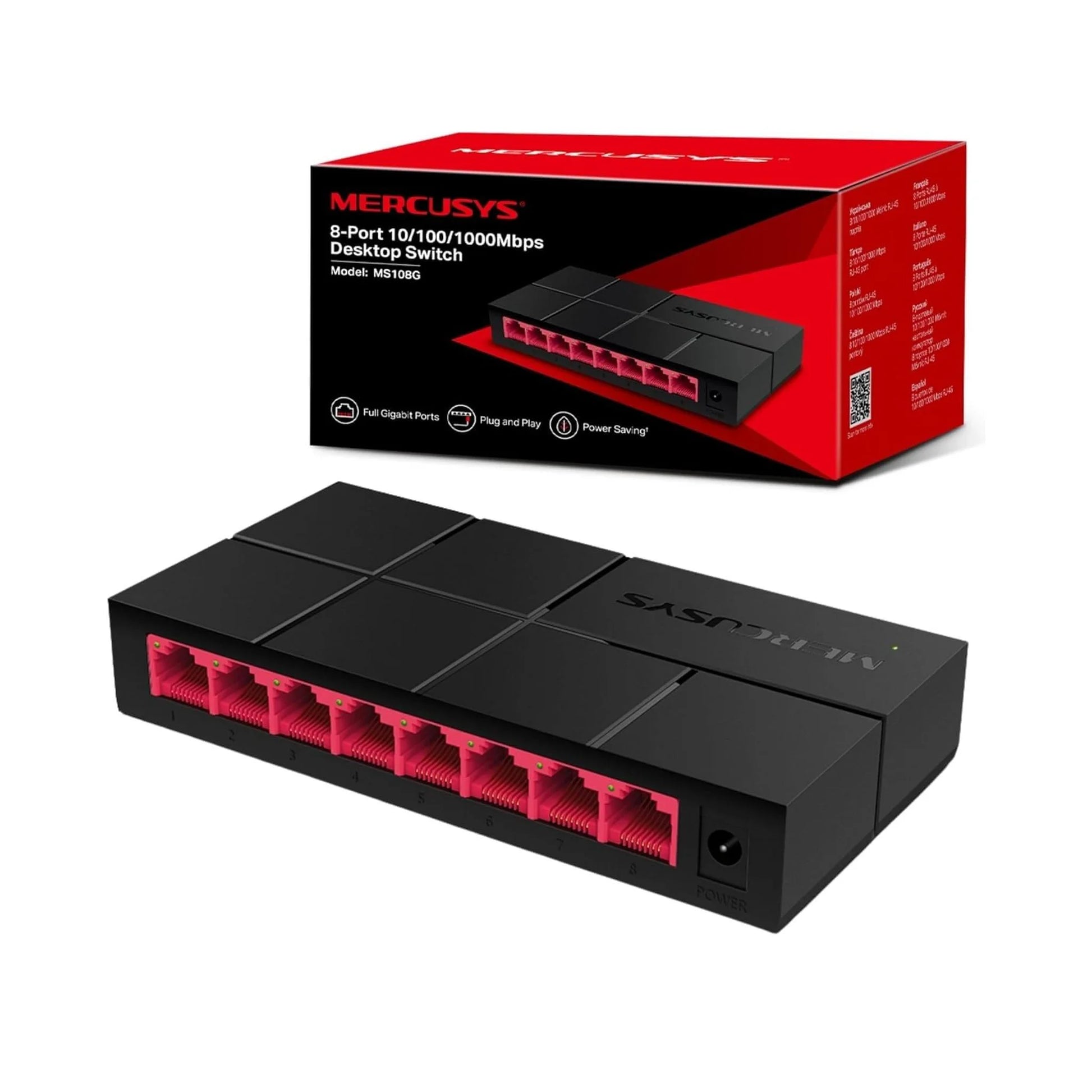

Mercusys MS108G 8-Port Gigabit Switch
Out of LAN ports on the router? Plug this in and add eight gigabit ports — no setup, no fan, no fuss.
- 8 x 10/100/1000Mbps RJ45
- 16 Gbps Switching Capacity
- Fanless & Silent
- Green Ethernet
- Ports 8 x Gigabit RJ45
- Switching Capacity 16 Gbps
- Cooling Fanless, Silent
- Setup Plug & Play, No Config
Most home routers give you two to four LAN ports, and they fill up fast once a desktop, a console, a NAS, a smart TV, and a mesh node all want a cable. The Mercusys MS108G is a compact 8-port switch that turns one of those ports into eight — at full gigabit speed, so a NAS backup or a large file copy runs about ten times faster than on a 10/100 switch. There is nothing to configure: connect one port to the router, plug your devices into the rest, and they are all on the same network. It is fanless, silent, and Green Ethernet cuts power use by up to 82% based on cable length and link status.
Why Choose the MS108G
- True Gigabit on Every Port10/100/1000Mbps on all eight ports — fast NAS transfers, 4K streaming, and large local copies without a 100Mbps ceiling.
- Eight Ports From OneTurn a single router LAN port into eight wired connections for PCs, consoles, NAS, TVs, and cameras.
- Zero ConfigurationUnmanaged plug-and-play — connect the cables and it works, no app, no web page, no login.
- Completely SilentFanless design in a compact red-and-black body; nothing to hear on a desk, shelf, or in a cabinet.
- Green Ethernet EfficiencyAutomatically lowers power draw on idle links and short cables, up to 82% savings.
- 16KB Jumbo Frames + 16Gbps CapacityNon-blocking switching and large frames keep all eight ports at full speed under load.
Who It's Built For
- The Home Media / NAS UserGigabit links between a desktop, a NAS, and a media player make backups and 4K playback effortless.
- The Gaming RoomLow-latency wired connections for several PCs and consoles off one wall port, at full speed.
- The Small OfficeAdd gigabit wired seats across a room or workspace without pulling new lines to the rack.
- The CCTV InstallerA silent aggregation point for a set of IP cameras feeding back to an NVR.
| Model | Mercusys MS108G (8-Port Gigabit Desktop Switch) |
|---|---|
| Ports | 8 x 10/100/1000Mbps RJ45, auto-negotiation, auto-MDI/MDIX |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x |
| Switching Capacity | 16 Gbps |
| Transmission Method | Store-and-forward |
| Data Rates | 10/100/1000Mbps half duplex, 20/200/2000Mbps full duplex |
| Buffer Capacity | 64 KB |
| Jumbo Frame | 16 KB |
| Energy Saving | Green Ethernet (up to 82% lower consumption) |
| Cooling | Fanless |
| LEDs | Power, Link/Act per port (1–8) |
| Power Supply | External 9V / 0.6A adapter (included) |
| Dimensions | 127 x 60.3 x 22 mm |
| Casing | Red and black plastic, desktop |
| In the Box | MS108G switch, power adapter, quick installation guide |
| Condition | New — Imported |
