| Model |

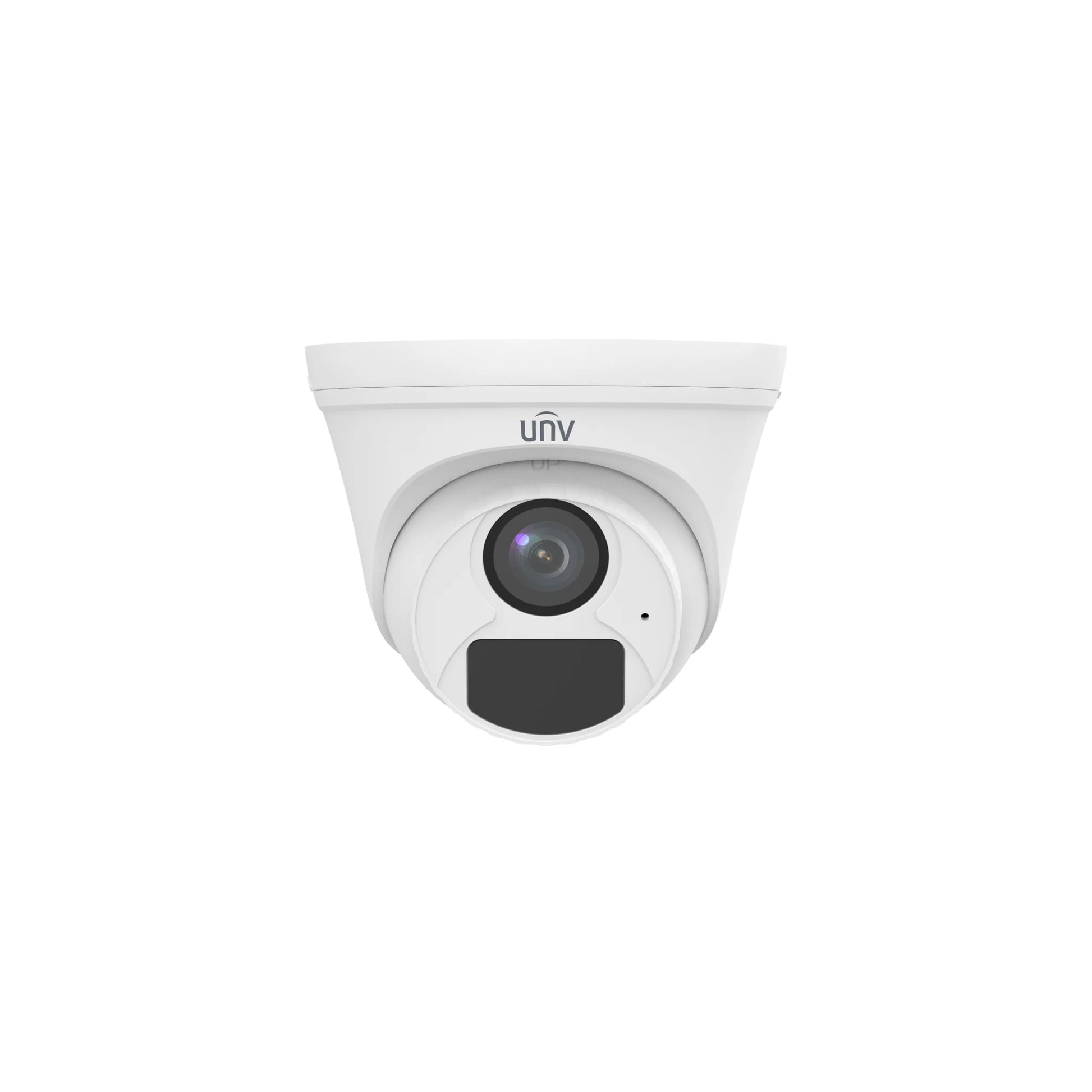

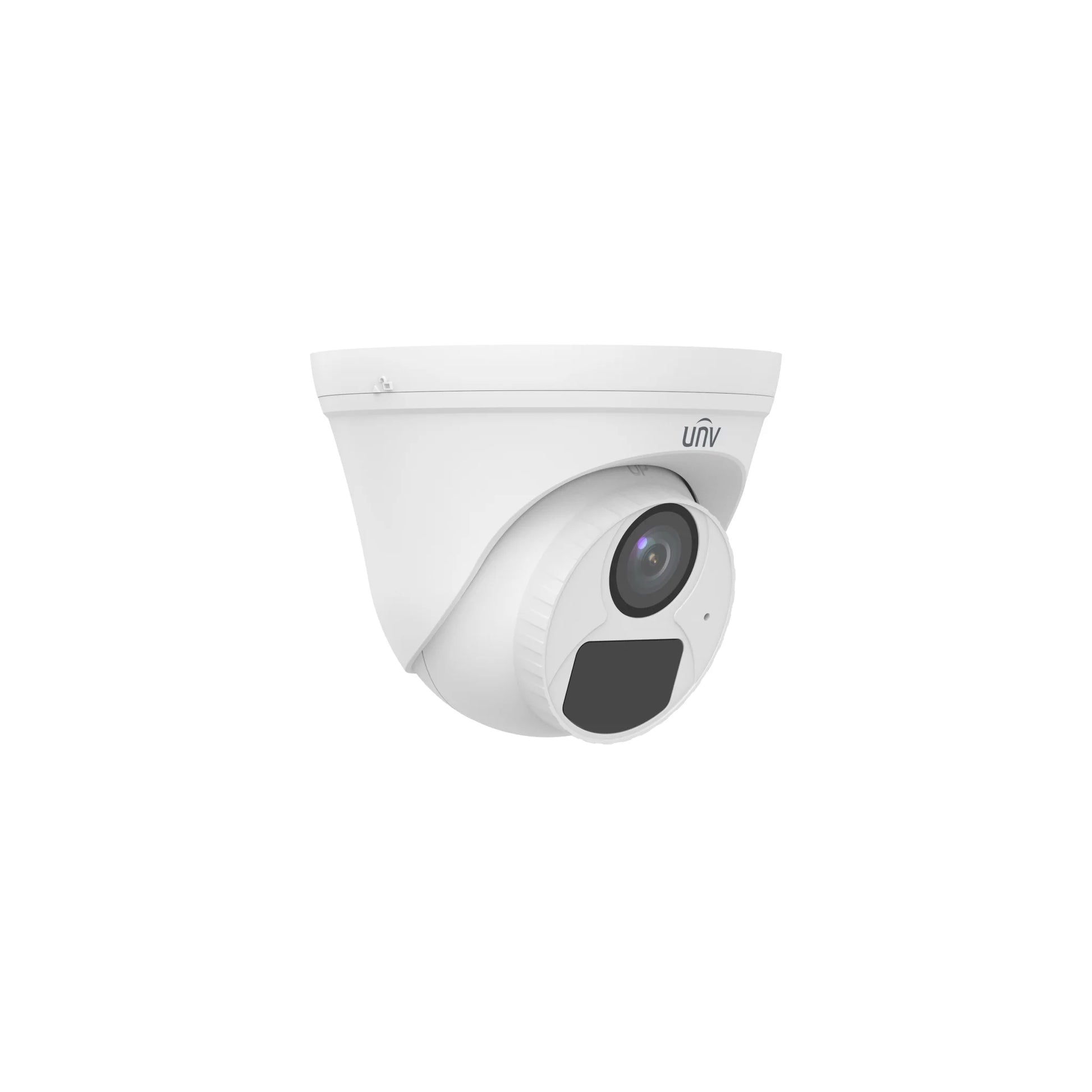

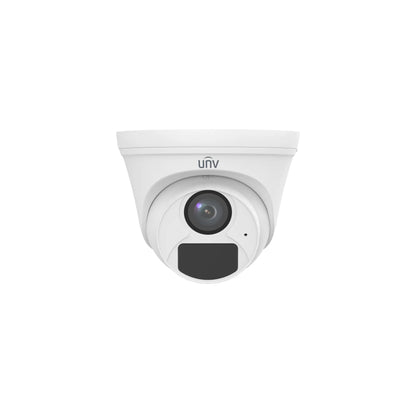

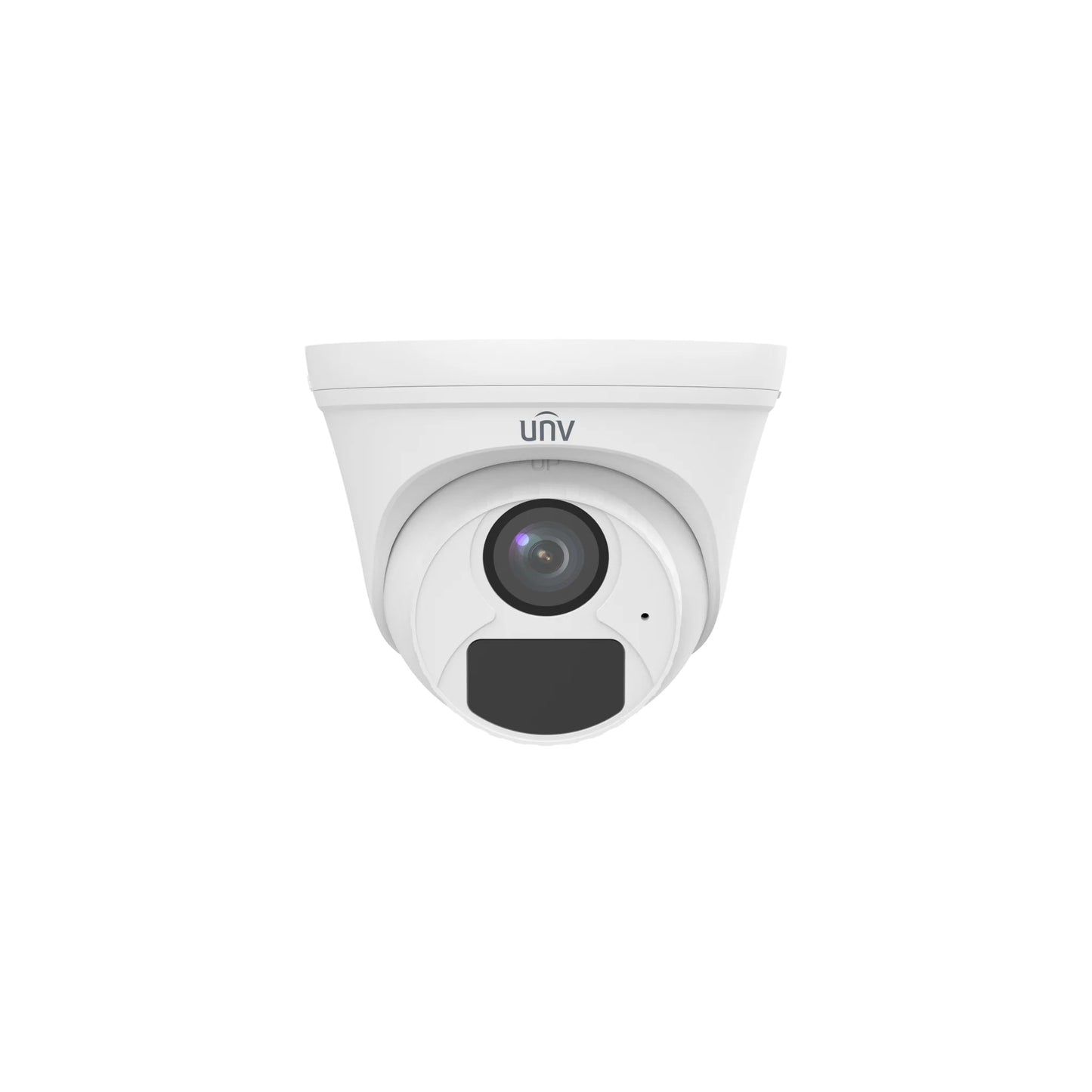

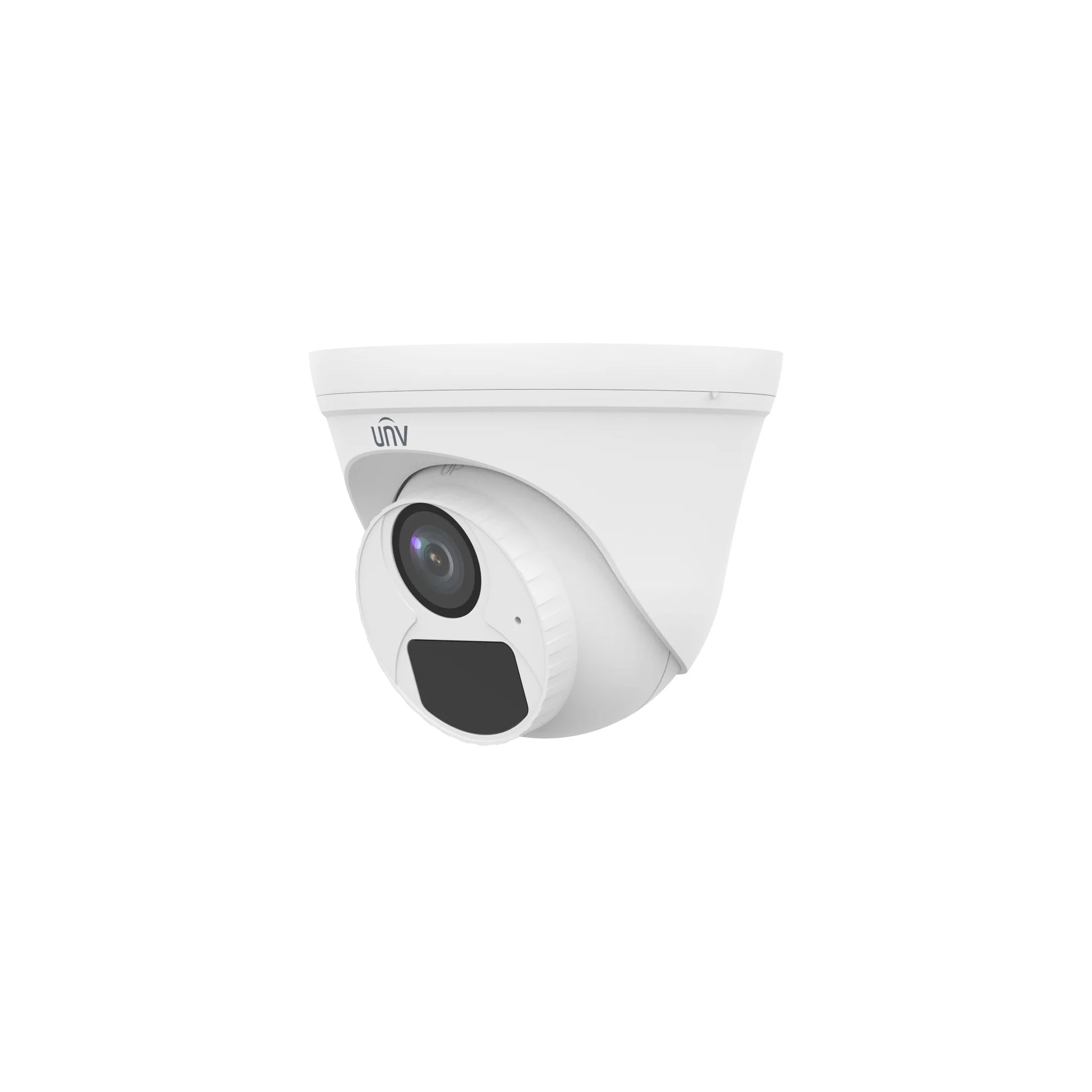

Uniview UAC-T112-AF28 (Indoor Dome with Mic) |
| Image |
| Image Sensor |
1/3″ CMOS, 2 MP (1920×1080) |
| Lens |
2.8 mm, ~90.5° horizontal view |
| Minimum Illumination |
0.02 lux (color), 0 lux with IR |
| Video |
| Resolution & Frame Rate |
1080P @ 25/30 fps; 720P @ 25/30 fps |
| Day / Night & Image |
| Features |
ICR Day/Night, DWDR, Digital Defog, 2D/3D DNR, 180° Flip |
| Interface & Audio |
| Power / Output |
DC 12 V; Video via BNC (TVI/AHD/CVI/CVBS); Built-in Mic (audio over coax) |
| Protection |
| Specifications |
IP67 rated; 4 kV surge protection; Operating temp −30 °C to 60 °C |
| Dimensions |
Ø 118 mm × 96 mm |
| Weight |
~182 g |
