| Model |

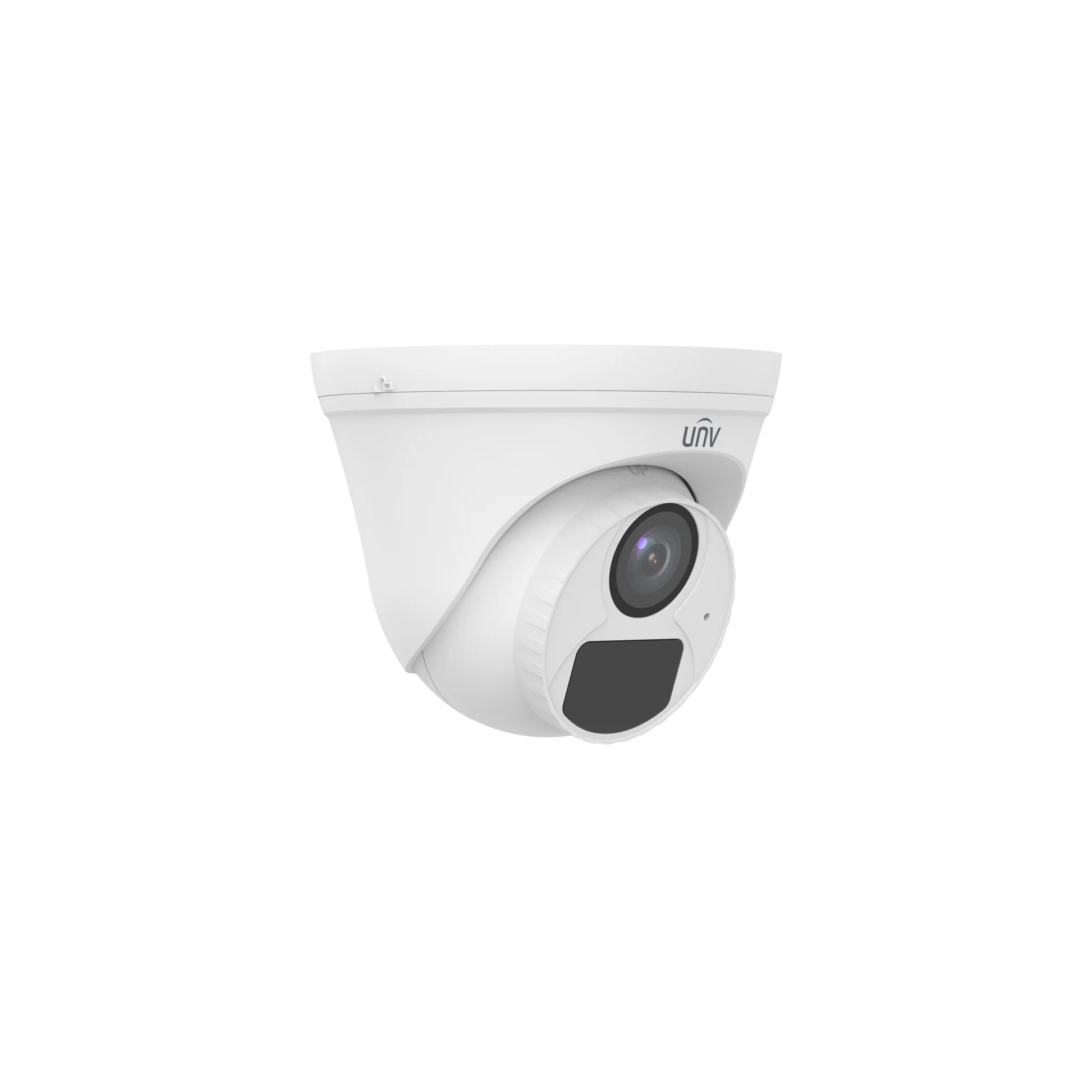

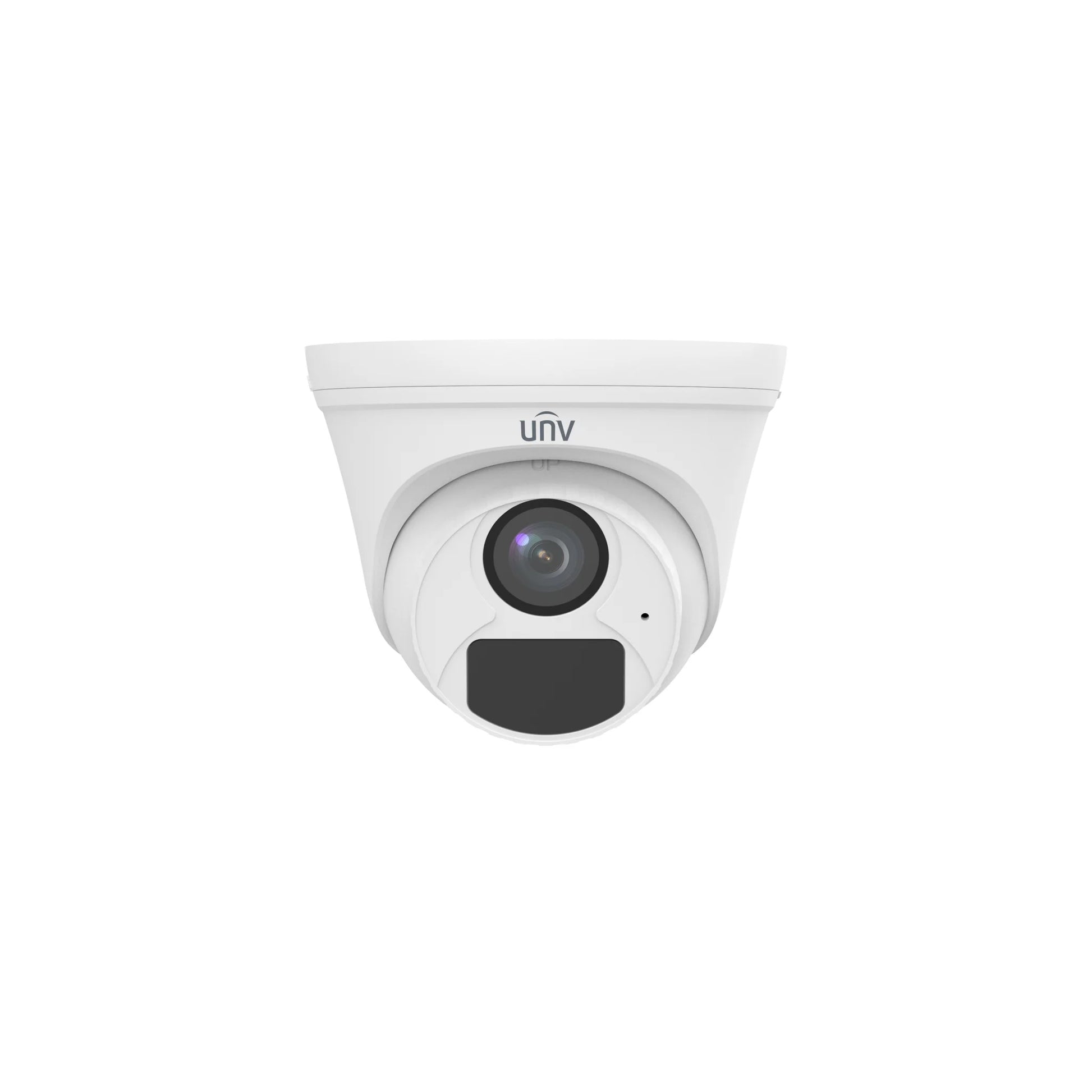

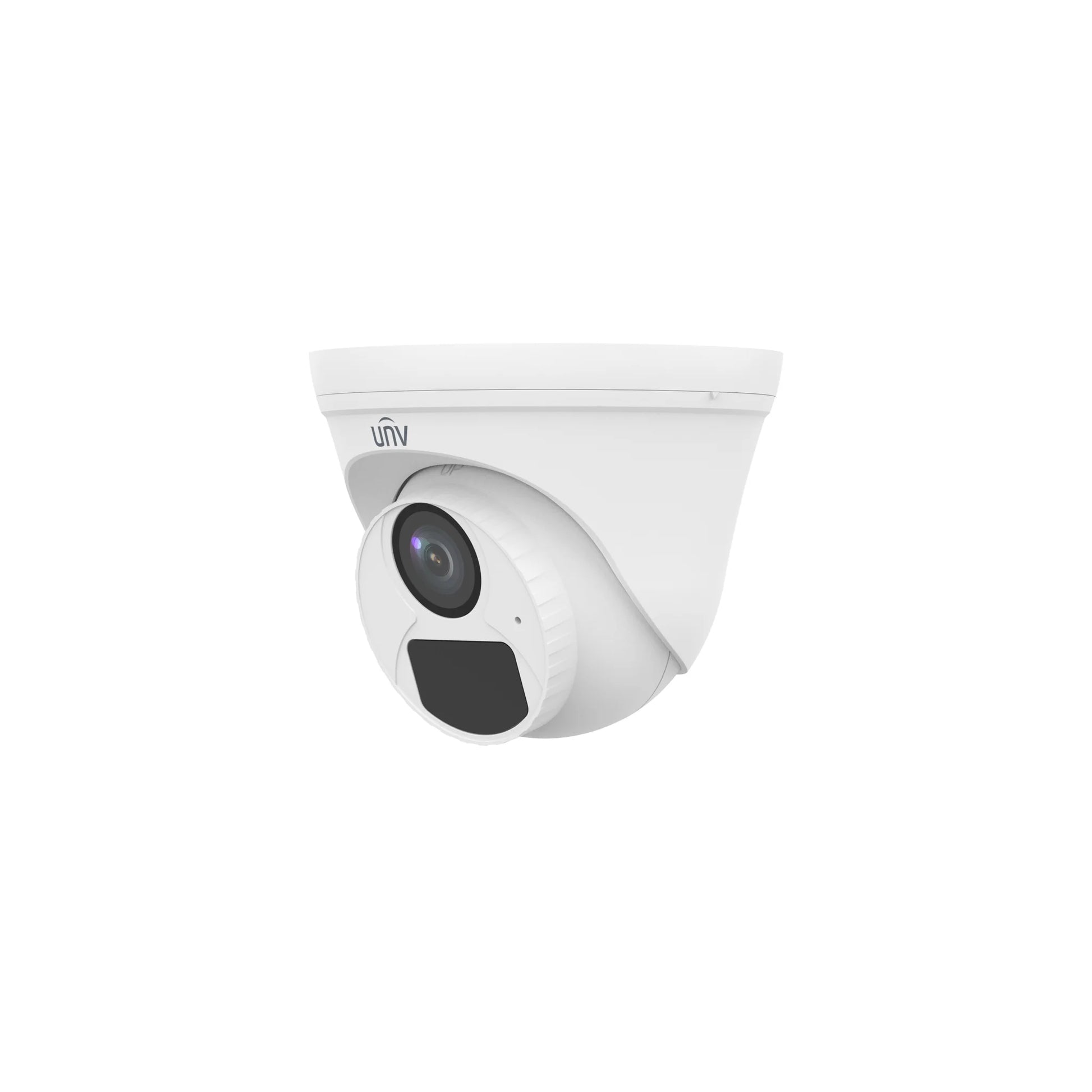

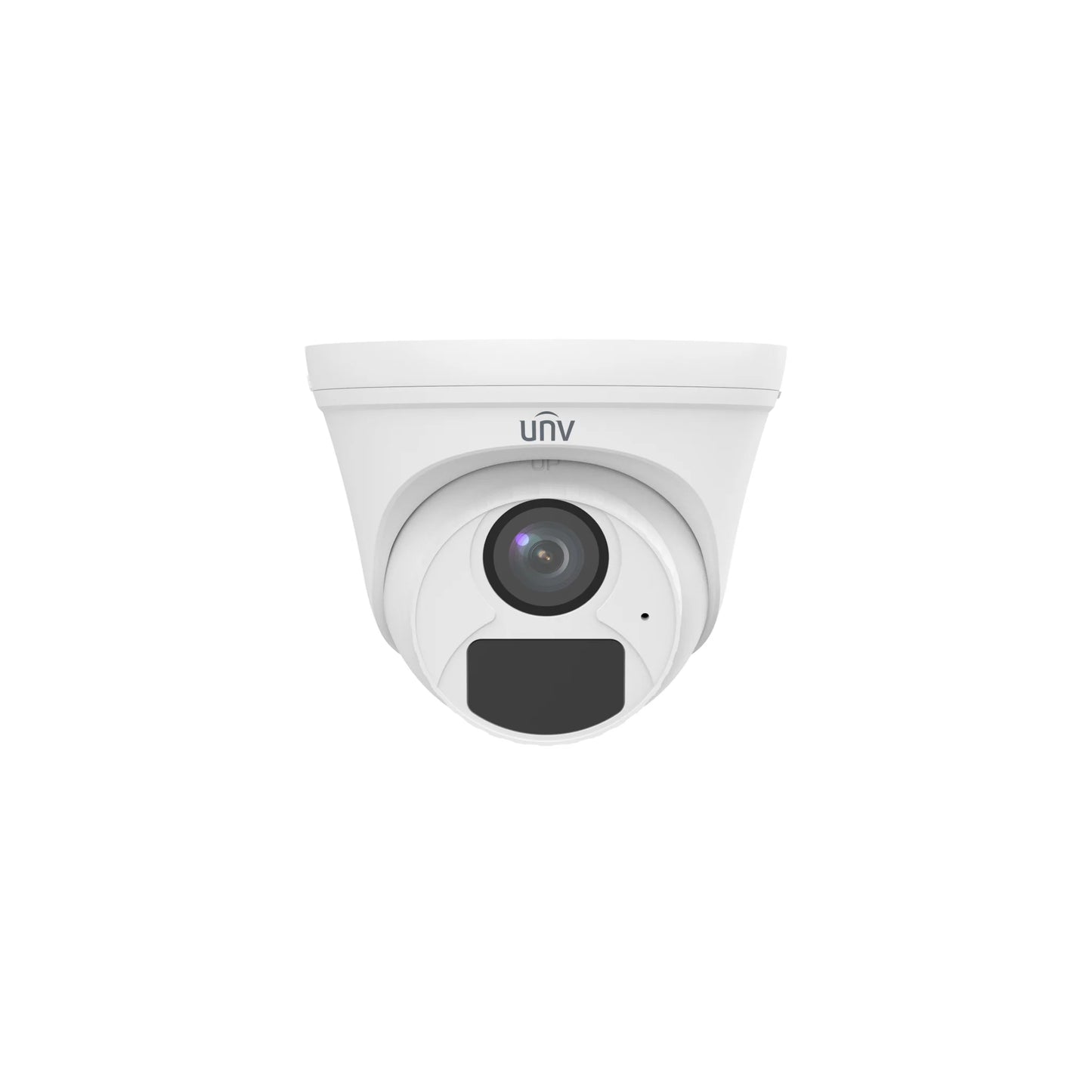

Uniview UAC-T132-F28 (Indoor Dome, 2 MP) |
| Image |
| Image Sensor |
2 MP, 1/3.2″ CMOS |
| Lens |
2.8 mm (H: 99.7°, V: 55.1°, D: 117.1°); optional 4 mm |
| Illumination |
IR up to 20 m; 0.02 lux (color), 0 lux (IR on) |
| Video |
| Formats & Frame Rate |
TVI/AHD/CVI: 1080p@25/30fps, 720p@25/30fps; CVBS analog |
| Image Enhancements |
| Features |
ICR Day/Night, 2D/3D DNR, DWDR, Smart IR, support 180° flip |
| Interface |
| Power / Video |
DC 12 V; Video via BNC |
| Durability |
| Build & Protection |
IP67 waterproof, 4 kV surge protection (power & video) |
| Environment |
-30 °C to 60 °C; ≤ 95 % RH |
| Dimensions |
Ø 85 mm × H 72 mm |
| Weight |
~89 g |
